Big Monitoring, Small Budget: Powering Observability on Kubernetes with Prometheus, Grafana & Mimir

Overview

When I was working at a startup, our goal was to set up a monitoring solution to track infrastructure components like virtual machines and applications – all while staying within a limited budget and a short timeframe. To achieve this, I chose open-source tools such as Prometheus, Grafana, Mimir, and Nginx. Since we were hosted on Google Cloud, the easiest way to get started with infrastructure and application monitoring using these tools was by deploying them on Google Kubernetes Engine (GKE). However, this guide can easily be adapted to set up monitoring on any cloud platform.

The open-source monitoring stack I selected includes:

• Prometheus: A time-series database (TSDB) that collects and stores metrics from infrastructure and applications.
• Mimir: A scalable, long-term storage backend that extends Prometheus by handling large volumes of time-series data.
• Grafana: A rich visualization and monitoring tool that displays collected metrics in dashboards and supports alerting based on thresholds.

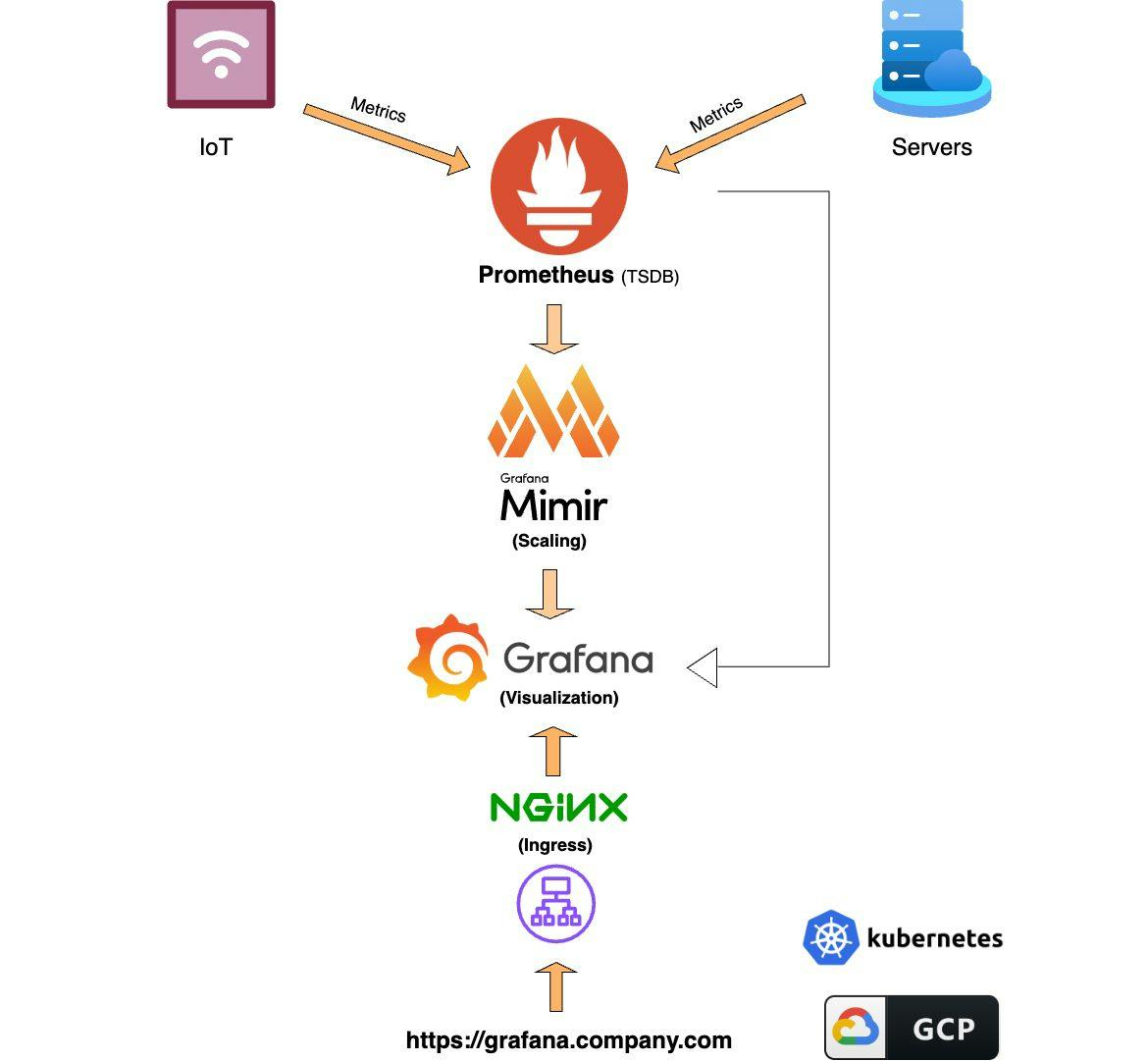

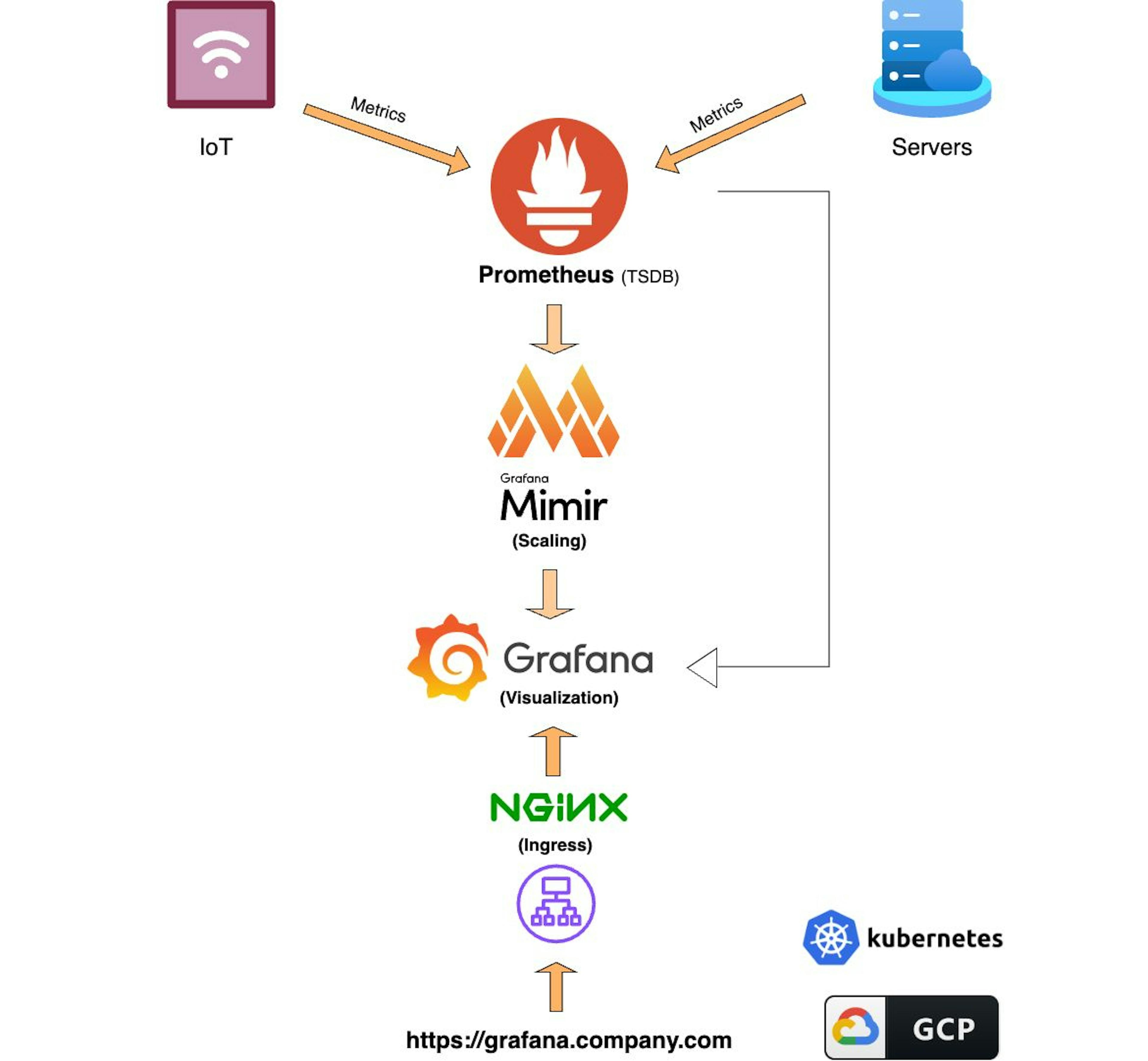

Component Descriptions and Flow:

• IoT Devices, Servers, and Applications: These are the data sources emitting metrics such as CPU usage, memory utilization, and custom application-specific metrics.
• Prometheus (TSDB): Collects and stores time-series metrics from IoT devices, servers, and applications.
• Grafana Mimir (Scaling Layer): Extends Prometheus by providing scalable, durable storage for large-scale metric workloads.
• Grafana (Visualization): Displays collected metrics in customizable dashboards and graphs and provides alerting capabilities.
• NGINX (Ingress Controller): Acts as a reverse proxy and secure access point to the Grafana and Prometheus user interfaces.
• Kubernetes: Orchestrates the entire monitoring stack as containerized services.
• Google Cloud Platform (GCP): Hosts the Kubernetes cluster and the supporting infrastructure.

Cluster Creation:

Below is the Terraform code to create a private Kubernetes cluster in GCP. A similar approach can be used to create private clusters in other cloud environments as well.

Note: In this setup, we are using a shared network from another project, so appropriate IAM permissions and network configurations must be applied.

GitHub code repo: https://github.com/pradeep-gaddamidi/Monitoring

Create a kubernetes cluster using the terraform:

cluster.tf

# google_client_config and kubernetes provider must be explicitly specified like the following.
data "google_client_config" "default" {}

provider "kubernetes" {
  host                   = "https://${module.gke.endpoint}"
  token                  = data.google_client_config.default.access_token
  cluster_ca_certificate = base64decode(module.gke.ca_certificate)
}

# Use selected cluster configuration
module "gke" {
  source                     = "terraform-google-modules/kubernetes-engine/google//modules/beta-private-cluster"
  version = "30.2.0"
  project_id                 = var.cluster_config[local.env].project_id
  name                       = var.cluster_config[local.env].name
  region                     = var.cluster_config[local.env].region
  zones                      = var.cluster_config[local.env].zones
  network                    = var.cluster_config[local.env].network
  network_project_id	     = var.cluster_config[local.env].network_project_id
  subnetwork                 = var.cluster_config[local.env].subnetwork
  ip_range_pods              = "${var.cluster_config[local.env].subnetwork}-pods"
  ip_range_services          = "${var.cluster_config[local.env].subnetwork}-services"
  http_load_balancing        = true
  enable_l4_ilb_subsetting   = true
  network_policy             = false
  horizontal_pod_autoscaling = true
  filestore_csi_driver       = false
  enable_private_endpoint    = true
  enable_private_nodes       = true
  remove_default_node_pool   = true
  master_ipv4_cidr_block     = "172.16.0.0/28"

  node_pools = [
    {
      name                      = "node-pool"
      machine_type              = var.cluster_config[local.env].machine_type
      node_locations            = join(",", var.cluster_config[local.env].zones)
      min_count                 = 1
      max_count                 = 1
      local_ssd_count           = 0
      spot                      = false
      disk_size_gb              = var.cluster_config[local.env].disk_size_gb
      disk_type                 = "pd-standard"
      image_type                = "COS_CONTAINERD"
      enable_gcfs               = false
      enable_gvnic              = false
      logging_variant           = "DEFAULT"
      auto_repair               = true
      auto_upgrade              = true
      service_account           = "${google_service_account.gke.email}"
      preemptible               = false
      initial_node_count        = 1
      autoscaling               = false
    },
  ]

  node_pools_oauth_scopes = {
    all = [
      "https://www.googleapis.com/auth/logging.write",
      "https://www.googleapis.com/auth/monitoring",
    ]
  }


  cluster_resource_labels = {
    environment   = local.env
    project       = var.cluster_config[local.env].project_id,
    resource_type = "gke",
    resource_name = var.cluster_config[local.env].name
    customer      = "all"
  }

  node_pools_labels = {
    all = {}

    default-node-pool = {
      default-node-pool = true
    }
  }

  node_pools_metadata = {
    all = {}

    default-node-pool = {
      node-pool-metadata-custom-value = "node-pool"
    }
  }

  node_pools_taints = {
    all = []

    default-node-pool = [
      {
        key    = "default-node-pool"
        value  = true
        effect = "PREFER_NO_SCHEDULE"
      },
    ]
  }

  node_pools_tags = {
    all = []

    default-node-pool = [
      "default-node-pool",
    ]
  }

  master_authorized_networks = [
    {
      cidr_block   = var.cluster_config[local.env].subnetwork_allow
      display_name = "VPC"
    }
  ]
}

resource "google_compute_subnetwork_iam_member" "network_user_service_account" {
  for_each    = { for user in var.cluster_config[local.env].network_user : user => user }
  project     = var.cluster_config[local.env].network_project_id
  subnetwork  = var.cluster_config[local.env].subnetwork
  region      = var.cluster_config[local.env].region
  role        = "roles/compute.networkUser"
  member      = "serviceAccount:${each.value}"
}

resource "google_project_iam_member" "hostServiceAgentUser_service_account" {
  for_each    = { for user in var.cluster_config[local.env].hostServiceAgent_user : user => user }
  project = var.cluster_config[local.env].network_project_id
  member      = "serviceAccount:${each.value}"
  role    = "roles/container.hostServiceAgentUser"
}

resource "google_project_iam_member" "serviceAgent_service_account" {
  for_each    = { for user in var.cluster_config[local.env].serviceAgent_user : user => user }
  project = var.cluster_config[local.env].network_project_id
  member      = "serviceAccount:${each.value}"
  role    = "roles/container.serviceAgent"
}

In the Terraform configuration above, we utilize the publicly available Google Terraform module terraform-google-modules/kubernetes-engine/google//modules/beta-private-cluster. This approach allows us to leverage well-maintained, community-supported code, avoiding the need to develop and maintain complex infrastructure code from scratch.

The permissions required for the service accounts used in this Terraform configuration are detailed below:

Role	Why it’s needed for GKE
roles/compute.networkUser	Allow nodes and load balancers to use the subnetwork.
roles/container.hostServiceAgentUser	Allow GKE to configure networking (firewalls, IPs, etc.) in host/shared VPCs.
roles/container.serviceAgent	Allow GKE control plane to manage itself and use necessary GCP APIs.

Terraform Variables:

Below are the variables I used in the terraform code

variables.tf

variable "cluster_config" {
  description = "Cluster configuration per environment"
  type        = map(object({
    project_id         = string
    name               = string
    description        = string
    regional           = bool
    region             = string
    zones              = list(string)
    network            = string
    subnetwork         = string
    network_project_id = string
    machine_type       = string
    disk_size_gb       = number
    subnetwork_allow   = string
    bucket_names       = list(string)
    host_project       = string
    network_user       = list(string)
    hostServiceAgent_user = list(string)
    serviceAgent_user = list(string)
    static_ips         = list(string)

    # Add more attributes as needed
  }))
  default = {
    nonprod-mon = {
      project_id         = "nonprod-monitoring"
      name               = "cluster-nonprod"
      description        = "nonprod cluster"
      regional           = true
      region             = "us-central1"
      zones              = ["us-central1-a", "us-central1-b", "us-central1-c"]
      network            = "nonprod-vpc"
      subnetwork         = "nonprod-us-central1-sb01"
      subnetwork_allow   = "10.226.0.0/22"
      network_project_id = "nonprod-networking"
      machine_type       = "e2-custom-4-10240"
      disk_size_gb       = "50"
      bucket_names = ["mon_blocks_storage", "mon_alertmanager_storage", "mon_ruler_storage"]
      host_project       = "nonprod-networking"
      network_user       = ["service-123456789123@container-engine-robot.iam.gserviceaccount.com", "[email protected]"]
      hostServiceAgent_user = ["service-123456789123@container-engine-robot.iam.gserviceaccount.com"]
      serviceAgent_user = ["service-123456789123@container-engine-robot.iam.gserviceaccount.com"]
      static_ips         = ["internal-ingress"]
    }
    prod-mon = {
      project_id         = "prod-monitoring"
      name               = "cluster-prod"
      description        = "prod cluster"
      regional           = true
      region             = "us-central1"
      zones              = ["us-central1-a", "us-central1-b", "us-central1-c"]
      network            = "prod-vpc"
      subnetwork         = "prod-us-central1-sb01"
      subnetwork_allow   = "10.227.0.0/22"
      network_project_id = "prod-networking"
      machine_type       = "n2-custom-4-32768"
      disk_size_gb       = "100"
      bucket_names       = ["mon_blocks_storage", "mon_alertmanager_storage", "mon_ruler_storage"]
      host_project       = "prod-networking"
      network_user       = ["service-123456789012@container-engine-robot.iam.gserviceaccount.com", "[email protected]"]
      hostServiceAgent_user = ["service-123456789012@container-engine-robot.iam.gserviceaccount.com"]
      serviceAgent_user = ["service-123456789012@container-engine-robot.iam.gserviceaccount.com"]
      static_ips         = ["internal-ingress"]
    }
  }
}

Terraform state:

A GCS bucket is used to store the terraform state information.

backend.tf

terraform {
  backend "gcs" {
    bucket = "environments-state"
    prefix = "terraform/state/gke"
  }
}

Terraform workspace:

I am using the Terraform workspaces, so make sure to configure your workspace before running the Terraform code. For example, you can set the workspace with the following command:

terraform workspace set non-prod

In the main.tf file, I defined the workspace like this:

main.tf

locals {

  env = terraform.workspace

}

This automatically sets the env local variable to match the current Terraform workspace (e.g., non-prod, prod), allowing the configuration to dynamically adjust based on the selected environment.

Static IPs

We need static IP addresses to configure DNS records, allowing us to access services using domain names such as prometheus.company.com or grafana.company.com.

static_ips.tf

data "google_compute_subnetwork" "subnet" {

  name    = var.cluster_config[local.env].subnetwork

  project = var.cluster_config[local.env].network_project_id

  region  = var.cluster_config[local.env].region

}

resource "google_compute_address" "static_ips" {

  for_each    = { for ip in var.cluster_config[local.env].static_ips : ip => ip }

  name        = each.value

  address_type = "INTERNAL"

  region      = var.cluster_config[local.env].region

  subnetwork = data.google_compute_subnetwork.subnet.self_link

  project     = var.cluster_config[local.env].project_id

}

Kuberenetes Service Account:

We are using a dedicated service account for the Kubernetes nodes to manage their permissions securely and follow best practices.

service_account.tf

resource "google_service_account" "gke" {

  account_id   = "gke-${local.env}"

  project    = var.cluster_config[local.env].project_id

  display_name = "Service account for gke"

}

Mimir GCS buckets:

We need Google Cloud Storage (GCS) buckets for Mimir’s long-term metric storage, allowing us to efficiently scale and persist large volumes of time-series data.

gcs_buckets.tf

module "gcs_buckets" {
  source  = "terraform-google-modules/cloud-storage/google"
  version = "~> 5.0"
  project_id  = var.cluster_config[local.env].project_id
  location    = "US"
  storage_class = "STANDARD"
  names = var.cluster_config[local.env].bucket_names
  labels = {
    environment   = local.env
    project       = var.cluster_config[local.env].project_id
    resource_type = "gcs"
    customer      = "all"
  }
}

resource "google_storage_bucket_iam_binding" "buckets" {
  for_each    = { for bucket in var.cluster_config[local.env].bucket_names : bucket => bucket }
  bucket = each.value
  role = "roles/storage.objectAdmin"
  members = [
    "serviceAccount:${google_service_account.gke.email}"
  ]
  depends_on = [module.gcs_buckets]
}

Namespaces (Kuberenetes):

Once the cluster is set up, create the following namespaces

• Promethues
• Mimir
• Grafana
• Nginx-Ingress

Installation (Helm Charts):

Use Helm charts to install the various monitoring software in their respective namespaces. Below is an example for Prometheus, but you can apply this approach to install other software such as Grafana, Mimir, and the NGINX Ingress Controller.

Promethues – https://github.com/prometheus-community/helm-charts

Grafana –  https://github.com/grafana/helm-charts

Mimir – https://grafana.com/docs/helm-charts/mimir-distributed/latest/get-started-helm-charts/

Nginx controller- https://github.com/kubernetes/ingress-nginx/tree/main/charts/ingress-nginx.

Helm Commands:

First, add the Prometheus Helm repository and update it:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts

helm repo update

Next, pull the Prometheus chart:

helm pull prometheus-community/prometheus --untar

This will create a prometheus/ directory in your current working directory, containing the chart contents. You can modify the default prometheus/values.yaml file before installing it, allowing you to set custom configurations such as the admin password, persistence settings, and service type.

Now, you can install Prometheus with the custom values_prod.yaml file:

helm install prometheus ./prometheus -f prometheus/values_prod.yaml -n monitoring

Similarly, you can install the other components:

helm install grafana ./grafana -f grafana/values_prod.yaml -n monitoring

helm install mimir ./mimir -f mimir/values_prod.yaml -f mimir/capped-small.yaml -n mimir

helm install nginx-ingress ./nginx-ingress -f nginx/values_prod.yaml -n ingress

Configuration (values.yaml files):

Ingress:

An Ingress controller is required to manage Ingress resources. Simply creating an Ingress resource will have no effect unless there is an Ingress controller in place. While there are many Ingress controllers available, including GKE’s built-in Ingress, I’ve chosen the NGINX Ingress Controller for various reasons.

Ingress exposes HTTP and HTTPS routes from outside the cluster to services within the cluster. Traffic routing is controlled by rules defined within the Ingress resource.

In this tutorial, we are using an internal IP to expose the services. Make sure to configure the following in your helm values.yaml to ensure proper routing and access:

Helm values.yaml

controller:
  service:
    internal:
      enabled: true
      annotations:
        # Create internal LB. More information: https://cloud.google.com/kubernetes-engine/docs/how-to/internal-load-balancing
        # For GKE versions 1.17 and later
        networking.gke.io/load-balancer-type: "Internal"
        # For earlier versions
        # cloud.google.com/load-balancer-type: "Internal"

        # Any other annotation can be declared here.

Also, provide the static internal IP you created earlier via Terraform in the loadBalancerIP field, like so:

Helm values.yaml

loadBalancerIP: "10.x.x.x"

Once the NGINX Ingress controller is installed, it will create a cloud load balancer with your cloud provider (e.g., GCP). Afterward, you need to create Ingress resources to route traffic to the appropriate destinations, such as Grafana and Prometheus.

The Ingress spec contains all the necessary information to configure a load balancer or proxy server. To ensure the traffic is routed correctly, you must include either the ingressClassName: nginx spec field or the kubernetes.io/ingress.class: nginx annotation in your Ingress resources.

Ingress resource:

my-ingress-prod.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: company-ingress
  namespace: monitoring
spec:
  ingressClassName: nginx
  rules:
  - host: grafana.company.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: grafana
            port:
              number: 80
  - host: prometheus.company.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: prometheus-server
            port:
              number: 80

What it does:

• Ingress Controller: It uses the nginx Ingress controller to handle the routing of external traffic to the internal services.
• Routing Rules:
  • grafana.company.com: Traffic directed to grafana.company.com will be routed to the grafana service, specifically to port 80.
  • prometheus.company.com: Traffic directed to prometheus.company.com will be routed to the prometheus-server service, specifically to port 80.
• Path Handling: Both routes use path: /, meaning any URL that starts with / will be forwarded to the respective services (Grafana or Prometheus).

This configuration ensures that incoming traffic to the specified domains is directed to the correct service inside your Kubernetes cluster, based on the hostname and path.

Prometheus:

If you’re using the pull model, Prometheus needs to collect metrics from your targets. To configure this, you can set up the scrape configuration as follows in your values.yaml file:

Helm values.yaml

    scrape_configs:
      - job_name: prometheus
        static_configs:
          - targets:
            - localhost:9090

If Prometheus requires scaling, it needs to forward the metrics to Mimir for long-term storage. You can configure Prometheus to send a copy of the metrics to Mimir by using the remoteWrite section in the Prometheus Helm values.yaml file, like so:

Helm values.yaml

  remoteWrite:

    - url: http://company-mimir-nginx.mimir.svc.cluster.local:80/api/v1/push

The idea behind using Mimir is to provide long-term storage for Prometheus metrics. This setup allows you to scale Prometheus as needed while avoiding a single point of failure.

I recommend enabling persistent volumes (PVC) for Prometheus pods. This ensures that your data is not lost when remoteWrite is enabled, or in case you’re only using a single Prometheus instance and want to have a fallback in the event Mimir encounters issues. Enabling persistent storage in the Helm values.yaml file ensures that the data is retained through pod restarts.

Helm values.yaml

persistentVolume:
    ## If true, Prometheus server will create/use a Persistent Volume Claim
    ## If false, use emptyDir
    ##
    enabled: true
    accessModes:
      - ReadWriteOnce     ## Prometheus server data Persistent Volume mount root path
    ##
    mountPath: /data
    ## Prometheus server data Persistent Volume size
    ##
    size: 500Gi
    # storageClass: "-"
    storageClass: "persistent-disk-rwo"

Set retention time carefully (--storage.tsdb.retention.time) in helm values.yaml

Helm values.yaml

  ## Prometheus data retention period (default if not specified is 15 days)
  ##
  retention: "90d"

Adjust above values as per your needs.

Mimir:

Grafana Mimir is an open-source, horizontally scalable, multi-tenant time-series database and monitoring platform Mimir is fully compatible with Prometheus, meaning it supports the Prometheus data model, query language (PromQL), and scraping mechanism. It can serve as a backend to store Prometheus metrics, enabling you to scale beyond what a single Prometheus server can handle. With efficient data storage and compression techniques, Mimir helps reduce the cost of storing long-term metric data. Mimir is useful in

1. Store large volumes of time-series data long-term.
2. Scale Prometheus beyond a single instance.
3. Use isolated storage with multi-tenancy support.
4. Ensure distributed, fault-tolerant metric storage. Grafana Mimir’s architecture is based on the principles of distributed systems, using components such as:

• Distributor: Receives and writes data from Prometheus instances or any compatible scraper.
• Ingester: Stores and processes incoming data. Data is held temporarily in the ingester until it is flushed to long-term storage.
• Store Gateway: Handles retrieving data from persistent storage and serves queries.
• Query Frontend: Manages query execution and routing, ensuring that queries are distributed across the available Mimir instances.
• Storage Backend: Mimir In our tutorial uses GCS storage backends.

The GCS storage backends used by Mimir are mon_blocks_storage, mon_alertmanager_storage, and mon_ruler_storage, which we have configured in our Terraform code.

In the Helm values.yaml file, configure the GCS buckets for storage along with the necessary credentials to access these GCS storage buckets. This allows Mimir to interact with Google Cloud Storage for long-term metric storage.

Helm values.yaml

  # -- Additional structured values on top of the text based 'mimir.config'. Applied after the text based config is evaluated for templates. Enables adding and modifying YAML elements in the evaulated 'mimir.config'.
  # To modify the resulting configuration, either copy and alter 'mimir.config' as a whole or use the 'mimir.structuredConfig' to add and modify certain YAML elements.
  structuredConfig:
    limits:
      out_of_order_time_window: 1h
      max_label_names_per_series: 100
    common:
      storage:
        backend: gcs
        gcs:
          service_account: |
            {
              "type": "service_account",
              "project_id": "prod-monitoring",
              "private_key_id": "50885800",
              "private_key": "xxxxx-----PRIVATE KEY-----\n",
              "client_email": "[email protected]",
              "client_id": "108488885",
              "auth_uri": "https://accounts.google.com/o/oauth2/auth",
              "token_uri": "https://oauth2.googleapis.com/token",
              "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
              "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/gke-prod%40prod-monitoring.iam.gserviceaccount.com",
              "universe_domain": "googleapis.com"
            }
    blocks_storage:
      backend: gcs
      gcs:
        bucket_name: mon_blocks_storage
    alertmanager_storage:
      gcs:
        bucket_name: mon_alertmanager_storage
    ruler_storage:
      gcs:
        bucket_name: mon_ruler_storage

Based on your requirements, use either the capped-small.yaml or capped-large.yaml values files to assign compute resources to the Mimir components. These files allow you to configure the CPU and memory limits for Mimir depending on the scale of your deployment.

Additionally, Mimir has an active community on Slack where you can seek help from other members while setting it up in your cluster.

Grafana:

In Grafana, add Mimir as a datasource for long-term metric storage. If you’re using only a single Prometheus instance, you can also add Prometheus as a datasource for backup purposes. Once the datasources are set up, you can visualize the metrics, configure dashboards, and create alerts in Grafana.

Additionally, enable Persistent Volume Claims (PVC) for Grafana to ensure that data is not lost if the pod restarts. This will help retain the configuration and data even through pod lifecycle changes.

Helm values.yaml

## Enable persistence using Persistent Volume Claims

## ref: http://kubernetes.io/docs/user-guide/persistent-volumes/

##

persistence:

  type: pvc

  enabled: true

  storageClassName: persistent-disk-rwo

  accessModes:

    - ReadWriteOnce

  size: 10Gi

DNS

Once everything is installed and configured, configure the DNS (e.g., prometheus.company.com or grafana.company.com) to point to the static IP you created earlier (10.x.x.x) using Terraform.

After completing this configuration, you should be able to access the metrics in Grafana. From there, you can visualize the data, create custom dashboards, and set up alerts.

For more details on creating dashboards and visualizing data in Grafana, refer to the https://grafana.com/docs/grafana/latest/dashboards/

Good luck! Feel free to connect with me on LinkedIn.
