Tracking Data Lineage at Scale: How This Offline Platform Handles Petabytes Daily

This article introduces an offline data governance platform built on DolphinScheduler, addressing issues like task dependency black holes and scalability bottlenecks. By implementing YAML-based dynamic compilation and automatic lineage capture, the platform enables efficient task dependency management and data tracking. It leverages the Neo4j graph database for lineage storage, supporting second-level impact analysis and root cause localization. Additionally, with a self-developed high-performance data import tool, data transmission efficiency is significantly improved.

Background and Challenges

Under the pressure of processing petabytes of data daily, the original scheduling system faced two major issues:

1. Task dependency black holes: Cross-system task dependencies (Hive/TiDB/StarRocks) were manually maintained, resulting in troubleshooting times exceeding 30 minutes.
2. Scalability bottlenecks: A single-point scheduler couldn’t handle thousands of concurrent tasks. The lack of a retry mechanism led to data latency rates surpassing 5%.

Technology Stack

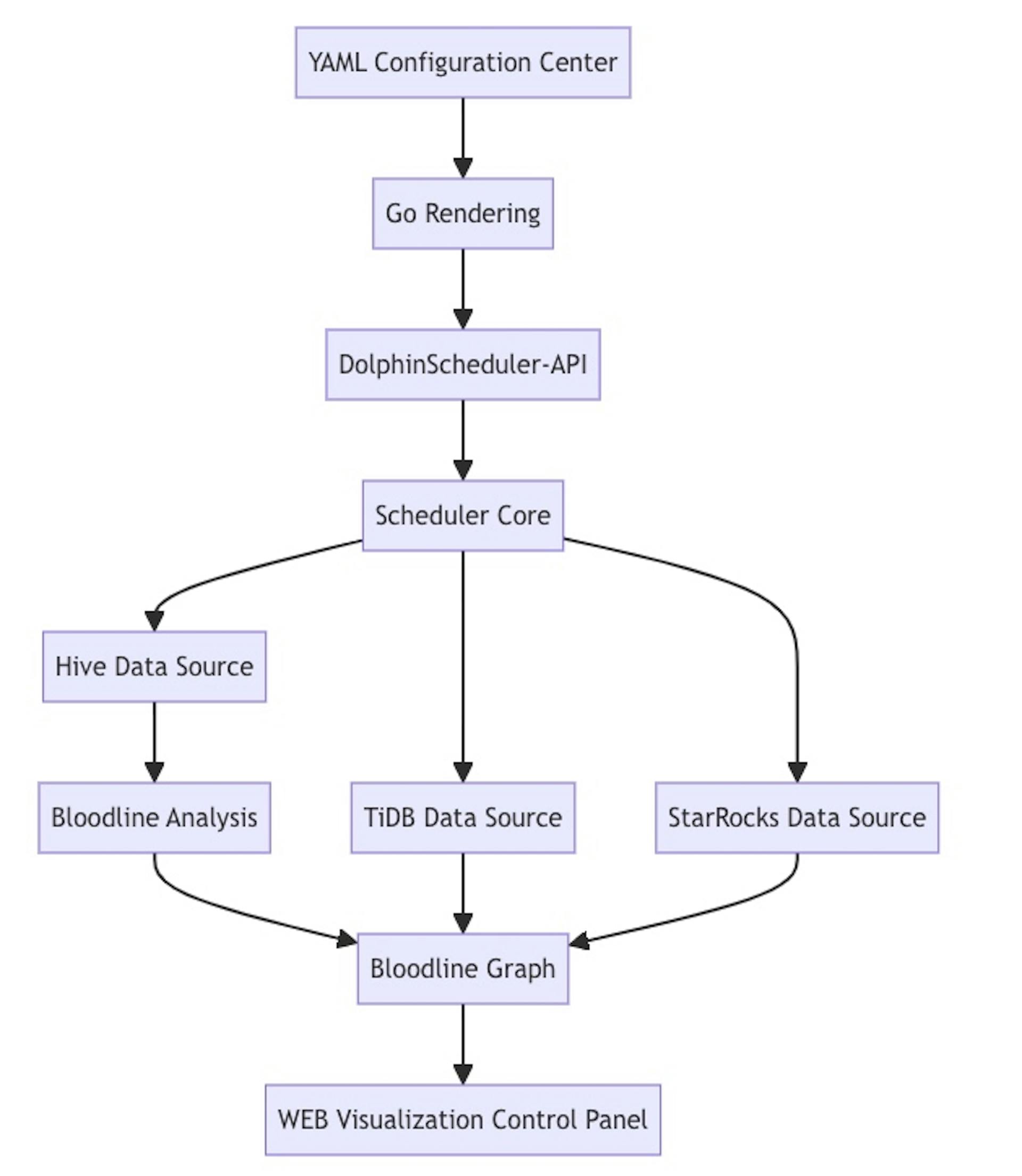

Core Architecture Design

Key Technical Implementations:

1. YAML Dynamic Compilation

type TaskDAG struct {
    Nodes []Node `yaml:"nodes"`
    Edges []Edge `yaml:"edges"`
}

func GenerateWorkflow(yamlPath string) (*ds.WorkflowDefine, error) {
    data := os.ReadFile(yamlPath)
    var dag TaskDAG
    yaml.Unmarshal(data, &dag)
    // Convert to DolphinScheduler DAG structure
    return buildDSDAG(dag)
}

2. Automatic Lineage Capture

• Intercepts SQL execution plans to parse input/output tables
• For non-SQL tasks, uses hooks to capture file paths

# StarRocks Broker Load Lineage Capture
def capture_brokerload(job_id):
    job = get_job_log(job_id)
    return {
      "input": job.params["hdfs_path"],
      "output": job.db_table
    }

Solutions to Key Challenges

1. Zero-Incident Migration Plan

• Dual-run comparison: Run both old and new systems in parallel; use the DataDiff tool to verify result consistency
• Canary release: Split traffic by business unit in stages
• Rollback mechanism: Full rollback capability within 5 minutes

2. Self-Developed High-Performance Import Tool

Key Optimizations:

• Batch submission using Go’s coroutine pool
• Dynamic buffer adjustment strategy

func (w *StarrocksWriter) batchCommit() {
    for {
        select {
        case batch := <-w.batchChan:
            w.doBrokerLoad(batch)
            // Dynamically adjust batch size
            w.adjustBatchSize(len(batch))
        }
    }
}

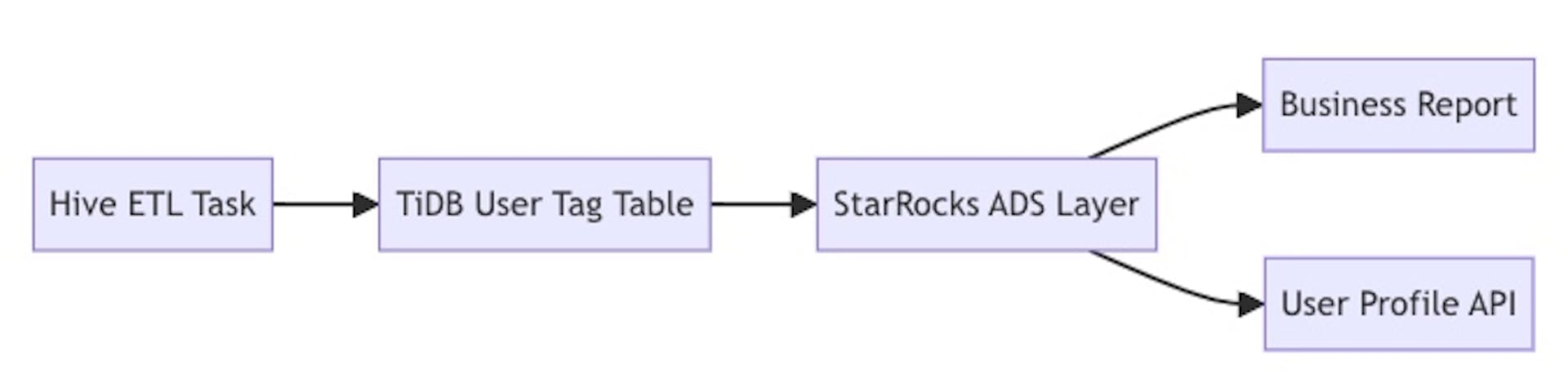

Lineage Management Implementation

Lineage data is stored in the Neo4j graph database, enabling:

• Impact Analysis: Locate the affected scope of a table-level change within seconds
• Root Cause Analysis: Trace the source of an issue within 30 seconds during failures
• Compliance Auditing: Meets GDPR data traceability requirements

Performance Gains
